Understanding HTTP/2’s Limitations: A Deep Technical Analysis

Table of Contents

  1. Introduction
  2. Historical Context: From HTTP/1 to HTTP/2
  3. TCP Fundamentals and Their Impact
  4. HTTP/2 Architecture Deep Dive
  5. The Head-of-Line Blocking Problem
  6. TCP Segment Ordering and Its Implications
  7. How HTTP/3 and QUIC Address These Limitations
  8. Performance Implications in Different Environments
  9. Implementation Examples
  10. Technical Deep Dive: Request Multiplexing
  11. Future Considerations
  12. References and Further Reading
  13. Conclusion

Introduction

The evolution of HTTP protocols has been driven by the constant need to improve web performance and reliability. While HTTP/2 introduced significant improvements over its predecessor, it still faced fundamental limitations rooted in its underlying TCP transport layer. This article explores these limitations in detail, focusing particularly on the head-of-line blocking problem that led to the development of HTTP/3.

Historical Context: From HTTP/1 to HTTP/2

HTTP/1’s primary limitation was its request-response model, where each connection could only handle one request at a time. This led to:

  • Connection Multiplication: Browsers opened multiple TCP connections to overcome the single request limitation. The need for multiple connections created additional overhead in terms of TCP handshakes and slow-start procedures, impacting performance especially on high-latency networks.

  • Resource Prioritization Issues: With multiple connections, the browser had limited control over request prioritization. This became particularly problematic when loading complex web pages with numerous resources of varying importance.

HTTP/2 addressed these limitations by introducing multiplexing over a single TCP connection, allowing multiple concurrent requests and responses.

TCP Fundamentals and Their Impact

TCP’s core characteristics directly influence HTTP/2’s behavior:

  • Ordered Delivery: TCP ensures bytes are delivered in the exact order they were sent. This fundamental characteristic, while ensuring data integrity, becomes a double-edged sword in HTTP/2’s multiplexed environment.

  • Segmentation: TCP breaks data into segments for transmission. Each segment carries a sequence number for ordering and reassembly at the destination.

  • Flow Control: TCP implements flow control mechanisms to prevent overwhelming receivers. This adds complexity when dealing with multiple logical streams in HTTP/2.

HTTP/2 Architecture Deep Dive

HTTP/2’s architecture introduces several key concepts:

  • Streams: Logical bidirectional sequences of frames multiplexed over a single TCP connection. Each stream carries a specific request-response pair, allowing concurrent operations.

  • Frames: The smallest unit of communication in HTTP/2. Frames contain frame headers that identify the stream they belong to and carry different types of data (headers, data, settings, etc.).

The Head-of-Line Blocking Problem

The core limitation of HTTP/2 stems from TCP’s ordered delivery requirement:

class TCP_Connection:
    def handle_segment(self, segment):
        if segment.sequence_number != self.expected_sequence:
            self.buffer_segment(segment)
            return False  # Segment cannot be processed yet

        self.process_segment(segment)
        self.expected_sequence += len(segment.data)
        return True

    def process_segment(self, segment):
        # All previous segments must be processed before this one
        for stream in self.streams:
            if stream.has_pending_segments():
                stream.block()  # Stream is blocked waiting for missing segment

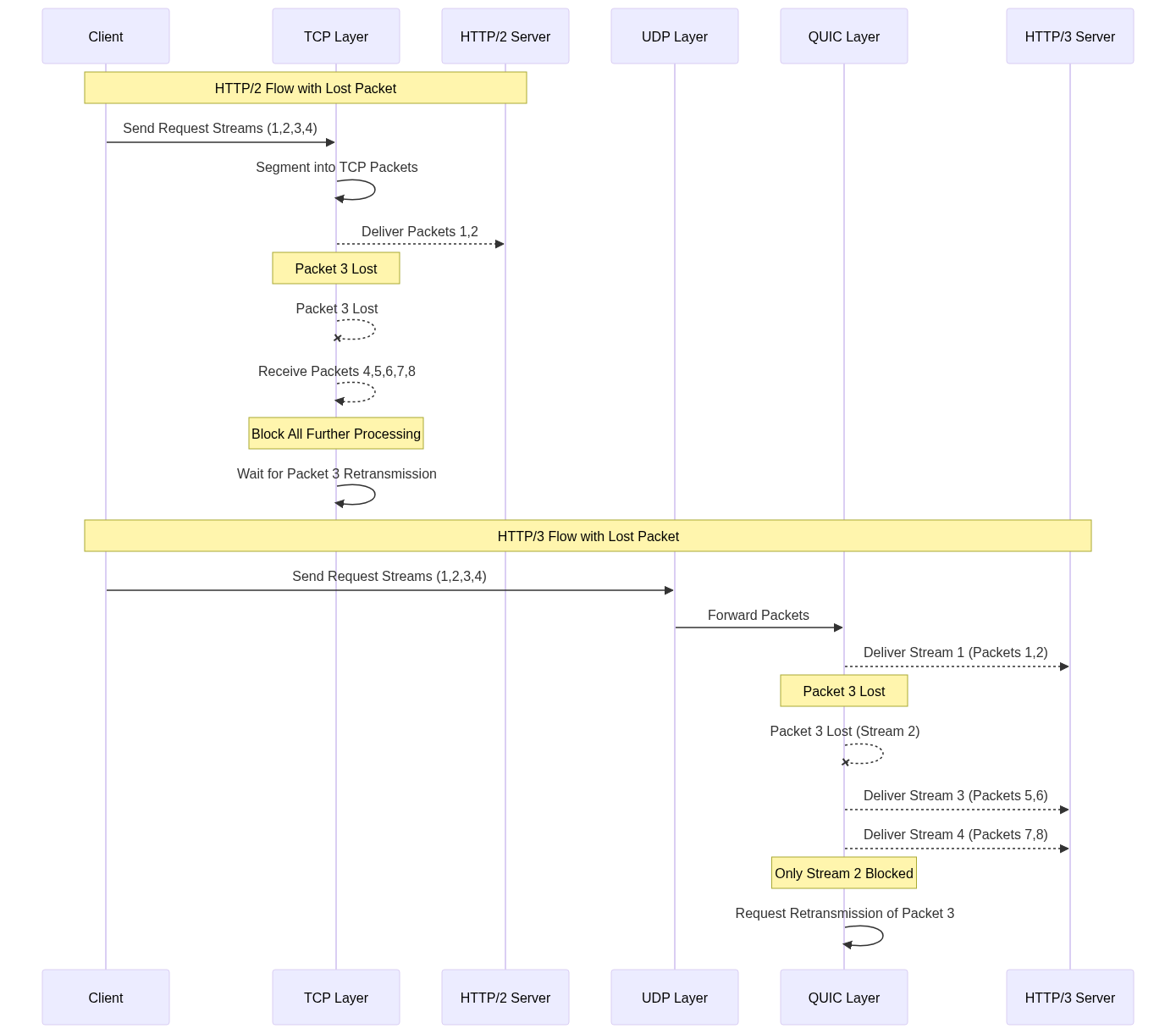

When a TCP segment is lost, all subsequent segments must wait for its retransmission, even if they belong to different HTTP/2 streams:

  • Segment Loss Impact: A single lost segment blocks all subsequent segments. This affects all streams multiplexed over the TCP connection, even if they’re logically independent.

  • Stream Independence: While streams are logically independent at the HTTP/2 layer. TCP’s ordering requirement means they become coupled at the transport layer.

TCP Segment Ordering and Its Implications

TCP’s strict ordering has far-reaching implications:

  • Sequence Numbering: Each byte in the TCP stream has a sequence number. This creates a linear dependency chain across all multiplexed streams.

  • Delivery Constraints: Even if later segments arrive successfully. They cannot be delivered to the application until the missing segment arrives.

Here’s an example implementation showing the impact:

class HTTP2_Connection:
    def __init__(self):
        self.streams = {}
        self.tcp_connection = TCP_Connection()

    def send_request(self, stream_id, request_data):
        segments = self.segment_data(request_data)
        for segment in segments:
            success = self.tcp_connection.send_segment(segment)
            if not success:
                # All subsequent segments are blocked
                self.block_streams(stream_id)

    def block_streams(self, from_stream_id):
        # All streams after the blocked stream must wait
        for stream_id in self.streams:
            if stream_id >= from_stream_id:
                self.streams[stream_id].state = 'blocked'

How HTTP/3 and QUIC Address These Limitations

HTTP/3 resolves these issues by using QUIC instead of TCP:

  • UDP Foundation: QUIC is built on UDP, allowing custom ordering per stream. This eliminates the global ordering requirement that causes head-of-line blocking.

  • Stream-Level Control: Each stream maintains its own ordering. A lost packet only affects the specific stream it belongs to.

class QUIC_Connection:
    def __init__(self):
        self.streams = {}

    def handle_packet(self, packet):
        stream = self.streams[packet.stream_id]
        if stream.can_process_packet(packet):
            stream.process_packet(packet)
        else:
            # Only this stream is blocked, others continue
            stream.buffer_packet(packet)

    def process_streams(self):
        for stream in self.streams.values():
            if stream.has_complete_data():
                stream.deliver_to_application()

Performance Implications in Different Environments

  • Data Center Environment: Low packet loss rates minimize the impact. However, even rare losses can affect all multiplexed streams in HTTP/2.

  • Internet Environment: Higher packet loss rates make the problem more significant. Mobile and wireless networks particularly suffer from this limitation.

Implementation Examples

Here’s a simplified example showing how HTTP/2 streams are affected by packet loss:

class HTTP2_Stream:
    def __init__(self, stream_id):
        self.stream_id = stream_id
        self.segments = []
        self.blocked = False

    def add_segment(self, segment):
        if self.blocked:
            return False

        self.segments.append(segment)
        return True

    def block(self):
        self.blocked = True
        # All subsequent streams are also blocked

class HTTP2_Connection:
    def __init__(self):
        self.streams = {}
        self.current_sequence = 0

    def handle_lost_segment(self, sequence_number):
        # All streams after the lost segment are blocked
        for stream in self.streams.values():
            if stream.first_sequence > sequence_number:
                stream.block()

Technical Deep Dive: Request Multiplexing

Let’s examine how requests are multiplexed in both HTTP/2 and HTTP/3:

class HTTP2_Multiplexer:
    def multiplex_requests(self, requests):
        tcp_segments = []
        for request in requests:
            # In HTTP/2, all requests share the same TCP sequence space
            segments = self.create_segments(request)
            tcp_segments.extend(segments)
        return tcp_segments

class HTTP3_Multiplexer:
    def multiplex_requests(self, requests):
        stream_packets = {}
        for request in requests:
            # In HTTP/3, each request has its own stream sequence space
            stream_id = self.get_next_stream_id()
            packets = self.create_packets(request)
            stream_packets[stream_id] = packets
        return stream_packets

Future Considerations

  • Evolution of QUIC: Ongoing development and optimization. New features and improvements continue to be added to the protocol.

  • Adoption Challenges: Infrastructure updates and deployment considerations. Network equipment and software must be updated to support HTTP/3.

References and Further Reading

  1. RFC 7540 - HTTP/2
  2. RFC 9000 - QUIC: A UDP-Based Multiplexed and Secure Transport
  3. RFC 9114 - HTTP/3
  4. IETF QUIC Working Group Documents
  5. HTTP/2 and HTTP/3 Performance Analysis Papers

Conclusion

While HTTP/2 brought significant improvements over HTTP/1, its reliance on TCP’s ordered delivery mechanism led to the head-of-line blocking problem. This limitation became particularly apparent in environments with packet loss, ultimately driving the development of HTTP/3 with QUIC. The new protocol’s stream-level independence and UDP foundation provide a more resilient solution for modern web applications.
