Day 04: Process Scheduling Basics - Orchestrating Computational Resources

Table of Contents

  1. Introduction
  2. Scheduling Fundamentals
  3. First-Come, First-Served (FCFS) Algorithm
  4. Scheduling Objectives
  5. Scheduling Criteria
  6. Practical Implementation
  7. Code Example
  8. Compilation and Execution Instructions
  9. References and Further Reading
  10. Conclusion

1. Introduction

Process scheduling is the heartbeat of modern operating systems, determining how computational resources are allocated and managed across multiple competing processes. This intricate dance of resource allocation ensures system efficiency, responsiveness, and fairness.

2. Scheduling Fundamentals

Purpose of Process Scheduling

Process scheduling serves as the critical mechanism that decides which process receives CPU time, when, and for how long. It acts like a sophisticated traffic controller, managing the flow of computational tasks across limited hardware resources.

Core Scheduling Responsibilities

  • Maximize CPU utilization by ensuring continuous execution
  • Provide fair access to computational resources
  • Minimize response time for interactive processes
  • Balance between throughput and individual process performance
  • Prevent process starvation

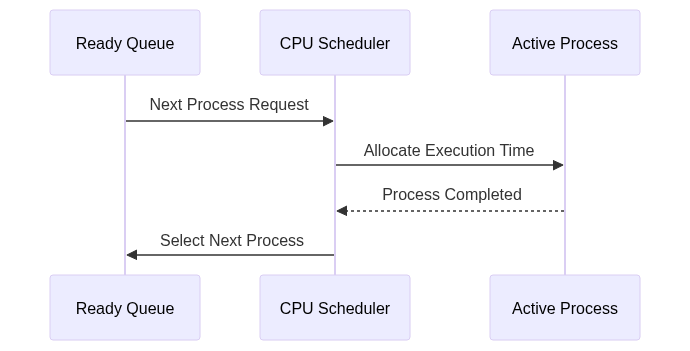

Scheduling Flow Diagram

3. First-Come, First-Served (FCFS) Algorithm

Algorithm Mechanism

The First-Come, First-Served (FCFS) scheduling algorithm represents the simplest scheduling approach. Processes are executed in the exact order they arrive in the ready queue, similar to a first-come, first-served line at a customer service counter.

FCFS Characteristics

  • Processes are handled sequentially
  • No prioritization mechanism
  • Simple implementation
  • Suffers from potential long waiting times
  • Convoy effect can significantly reduce overall system performance

Performance Implications

FCFS can lead to suboptimal resource utilization, especially when short processes are queued behind long-running processes. This can result in increased average waiting time and reduced system responsiveness.

4. Scheduling Objectives

Performance Optimization Goals

  • CPU Utilization: Maximize the percentage of time the CPU is actively processing tasks
  • Throughput: Maximize the number of processes completed per unit time
  • Turnaround Time: Minimize total time from process submission to completion
  • Waiting Time: Minimize time processes spend waiting in the ready queue
  • Response Time: Minimize time between process submission and first response

5. Scheduling Criteria

Selection Parameters

  • Process Priority
  • Computational Intensity
  • I/O Requirements
  • Memory Footprint
  • Process Age
  • Deadline Constraints

6. Practical Implementation Considerations

Scheduling Queue Types

  • Job Queue: Contains all processes in the system
  • Ready Queue: Processes awaiting CPU execution
  • Device Queue: Processes waiting for I/O operations

Context Switching Overhead

Every scheduling decision involves a context switch, which consumes computational resources. Efficient scheduling algorithms minimize this overhead while maintaining system responsiveness.

7. Code Example: FCFS Scheduling Simulation

#include <stdio.h>

#define MAX_PROCESSES 10

typedef struct {
    int process_id;
    int arrival_time;
    int burst_time;
    int waiting_time;
    int turnaround_time;
} Process;

void fcfs_scheduling(Process processes[], int n) {
    int total_waiting_time = 0;
    int total_turnaround_time = 0;

    processes[0].waiting_time = 0;
    processes[0].turnaround_time = processes[0].burst_time;

    for (int i = 1; i < n; i++) {
        processes[i].waiting_time =
            processes[i-1].waiting_time + processes[i-1].burst_time;

        processes[i].turnaround_time =
            processes[i].waiting_time + processes[i].burst_time;
    }

    printf("Process\tArrival\tBurst\tWaiting\tTurnaround\n");

    for (int i = 0; i < n; i++) {
        total_waiting_time += processes[i].waiting_time;
        total_turnaround_time += processes[i].turnaround_time;

        printf("%d\t%d\t%d\t%d\t%d\n",
               processes[i].process_id,
               processes[i].arrival_time,
               processes[i].burst_time,
               processes[i].waiting_time,
               processes[i].turnaround_time);
    }

    printf("Average Waiting Time: %.2f\n",
           (float)total_waiting_time / n);
    printf("Average Turnaround Time: %.2f\n",
           (float)total_turnaround_time / n);
}

int main() {
    Process processes[MAX_PROCESSES] = {
        {1, 0, 10},
        {2, 1, 5},
        {3, 3, 8}
    };

    fcfs_scheduling(processes, 3);
    return 0;
}

8. Compilation and Execution Instructions

For Linux/Unix Systems:

# Compile the program
gcc -o fcfs_scheduling fcfs_scheduling.c

# Run the executable
./fcfs_scheduling

9. References and Further Reading

Academic References

  1. Silberschatz, A., Galvin, P. B., & Gagne, G. (2018). Operating System Concepts
  2. Tanenbaum, A. S. (2006). Modern Operating Systems

Online Resources

  1. Documentation
    • Linux Scheduling Documentation: https://www.kernel.org/doc/html/latest/scheduler/
    • POSIX Scheduling Specifications: https://pubs.opengroup.org/onlinepubs/9699919799/
  2. Stack Overflow Threads
    • “Understanding CPU Scheduling”: https://stackoverflow.com/questions/tagged/scheduling
  3. Stack Exchange Discussions
    • Computer Science Stack Exchange: https://cs.stackexchange.com/questions/tagged/scheduling
    • Unix & Linux Stack Exchange: https://unix.stackexchange.com/questions/tagged/scheduling

10. Conclusion

Process scheduling represents a sophisticated ballet of computational resource management. By understanding its fundamental mechanisms, we gain insights into how operating systems achieve remarkable efficiency and responsiveness.

Key Insights

  • Scheduling determines computational resource allocation
  • FCFS is a basic but foundational scheduling approach
  • Multiple criteria influence scheduling decisions
  • Efficient scheduling minimizes system overhead

Prepare for Day 5: Advanced Scheduling Algorithms

Master the art of computational orchestration!
