Exploring Operating Systems

Day 14: Understanding Deadlock Detection Algorithms and Banker’s Algorithm

Table of Contents

• Introduction
• Understanding Deadlocks
  • Definition and Characteristics
  • Conditions for Deadlock
  • Real-world Examples
• Deadlock Detection Mechanisms
  • Resource Allocation Graph
  • Wait-for Graph
  • State Detection Algorithm
• Banker’s Algorithm In-depth
  • Safety Algorithm
  • Resource Request Algorithm
  • Implementation Details
• Implementation Examples
  • Resource Allocation Graph Implementation
  • Banker’s Algorithm Implementation
• Performance Analysis
• Common Challenges and Solutions
• Best Practices
• Conclusion
• References and Further Reading

1. Introduction

Deadlock detection is a critical aspect of operating system design and process management. This comprehensive guide explores the intricacies of deadlock detection algorithms, with a special focus on Banker’s Algorithm. We’ll examine both theoretical concepts and practical implementations, providing working code examples and detailed explanations.

2. Understanding Deadlocks

Definition and Characteristics

A deadlock is a situation where a set of processes are blocked because each process is holding a resource and waiting for another resource acquired by some other process.

Conditions for Deadlock

• Mutual Exclusion: Resources cannot be shared simultaneously. Example: A printer can only be used by one process at a time. Implementation involves semaphores or mutex locks.
• Hold and Wait: Processes hold resources while waiting for additional ones. Creates resource dependency chains. Can be prevented through resource preallocation.
• No Preemption: Resources cannot be forcibly taken from processes. Only the holding process can release resources. Critical for maintaining system integrity.
• Circular Wait: Circular chain of processes waiting for resources. Each process holds resources needed by the next. Forms a closed loop of resource dependencies.

Real-world Examples

• Database Transactions:

-- Transaction 1:
UPDATE Account_A SET balance = balance - 100;
UPDATE Account_B SET balance = balance + 100;

-- Transaction 2:
UPDATE Account_B SET balance = balance - 50;
UPDATE Account_A SET balance = balance + 50;

• File System Operations:

// Process 1:
lock(file1);
lock(file2);

// Process 2:
lock(file2);
lock(file1);

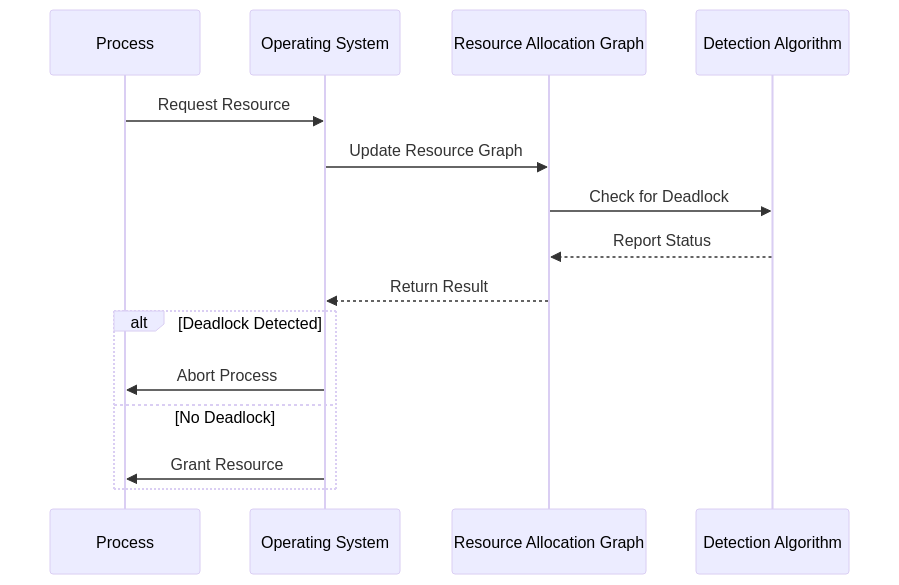

3. Deadlock Detection Mechanisms

Resource Allocation Graph (RAG)

A directed graph that represents the relationship between processes and resources.

#include <stdio.h>
#include <stdlib.h>

#define MAX_PROCESSES 10
#define MAX_RESOURCES 10

typedef struct {
    int allocation[MAX_PROCESSES][MAX_RESOURCES];
    int request[MAX_PROCESSES][MAX_RESOURCES];
    int available[MAX_RESOURCES];
    int processes;
    int resources;
} ResourceGraph;

// Initialize Resource Graph
void initializeRAG(ResourceGraph *graph, int p, int r) {
    graph->processes = p;
    graph->resources = r;

    // Initialize matrices
    for(int i = 0; i < p; i++) {
        for(int j = 0; j < r; j++) {
            graph->allocation[i][j] = 0;
            graph->request[i][j] = 0;
        }
    }

    // Initialize available resources
    for(int i = 0; i < r; i++) {
        graph->available[i] = 0;
    }
}

// Check for cycle in the graph (deadlock detection)
int detectDeadlock(ResourceGraph *graph) {
    int work[MAX_RESOURCES];
    int finish[MAX_PROCESSES] = {0};
    int deadlock = 0;

    // Initialize work array
    for(int i = 0; i < graph->resources; i++) {
        work[i] = graph->available[i];
    }

    // Find an unfinished process that can be completed
    int found;
    do {
        found = 0;
        for(int i = 0; i < graph->processes; i++) {
            if(!finish[i]) {
                int canComplete = 1;

                // Check if process can complete with available resources
                for(int j = 0; j < graph->resources; j++) {
                    if(graph->request[i][j] > work[j]) {
                        canComplete = 0;
                        break;
                    }
                }

                if(canComplete) {
                    // Process can complete, release its resources
                    for(int j = 0; j < graph->resources; j++) {
                        work[j] += graph->allocation[i][j];
                    }
                    finish[i] = 1;
                    found = 1;
                }
            }
        }
    } while(found);

    // Check if all processes finished
    for(int i = 0; i < graph->processes; i++) {
        if(!finish[i]) {
            deadlock = 1;
            break;
        }
    }

    return deadlock;
}

int main() {
    ResourceGraph graph;
    int p = 5, r = 3;

    initializeRAG(&graph, p, r);

    // Example resource allocation
    graph.allocation[0][0] = 1; graph.allocation[0][1] = 0; graph.allocation[0][2] = 0;
    graph.allocation[1][0] = 2; graph.allocation[1][1] = 0; graph.allocation[1][2] = 2;
    graph.allocation[2][0] = 3; graph.allocation[2][1] = 0; graph.allocation[2][2] = 2;
    graph.allocation[3][0] = 0; graph.allocation[3][1] = 1; graph.allocation[3][2] = 0;
    graph.allocation[4][0] = 0; graph.allocation[4][1] = 0; graph.allocation[4][2] = 2;

    // Example resource requests
    graph.request[0][0] = 0; graph.request[0][1] = 0; graph.request[0][2] = 0;
    graph.request[1][0] = 2; graph.request[1][1] = 0; graph.request[1][2] = 2;
    graph.request[2][0] = 0; graph.request[2][1] = 0; graph.request[2][2] = 0;
    graph.request[3][0] = 1; graph.request[3][1] = 0; graph.request[3][2] = 0;
    graph.request[4][0] = 0; graph.request[4][1] = 0; graph.request[4][2] = 2;

    // Available resources
    graph.available[0] = 3;
    graph.available[1] = 3;
    graph.available[2] = 2;

    if(detectDeadlock(&graph)) {
        printf("Deadlock detected!\n");
    } else {
        printf("No deadlock detected.\n");
    }

    return 0;
}

Wait-for Graph

A simplified version of RAG showing only process dependencies.

#include <stdio.h>
#include <stdlib.h>

#define MAX_PROCESSES 10

typedef struct {
    int matrix[MAX_PROCESSES][MAX_PROCESSES];
    int processes;
} WaitForGraph;

// Initialize Wait-for Graph
void initializeWFG(WaitForGraph *graph, int p) {
    graph->processes = p;
    for(int i = 0; i < p; i++) {
        for(int j = 0; j < p; j++) {
            graph->matrix[i][j] = 0;
        }
    }
}

// Detect cycle using DFS
int detectCycleDFS(WaitForGraph *graph, int vertex, int visited[], int recStack[]) {
    if(!visited[vertex]) {
        visited[vertex] = 1;
        recStack[vertex] = 1;

        for(int i = 0; i < graph->processes; i++) {
            if(graph->matrix[vertex][i]) {
                if(!visited[i] && detectCycleDFS(graph, i, visited, recStack)) {
                    return 1;
                } else if(recStack[i]) {
                    return 1;
                }
            }
        }
    }
    recStack[vertex] = 0;
    return 0;
}

// Detect deadlock in Wait-for Graph
int detectDeadlock(WaitForGraph *graph) {
    int visited[MAX_PROCESSES] = {0};
    int recStack[MAX_PROCESSES] = {0};

    for(int i = 0; i < graph->processes; i++) {
        if(detectCycleDFS(graph, i, visited, recStack)) {
            return 1;
        }
    }
    return 0;
}

int main() {
    WaitForGraph graph;
    int p = 4;

    initializeWFG(&graph, p);

    // Example: Process 0 waiting for Process 1
    graph.matrix[0][1] = 1;
    // Process 1 waiting for Process 2
    graph.matrix[1][2] = 1;
    // Process 2 waiting for Process 3
    graph.matrix[2][3] = 1;
    // Process 3 waiting for Process 0 (creates a cycle)
    graph.matrix[3][0] = 1;

    if(detectDeadlock(&graph)) {
        printf("Deadlock detected!\n");
    } else {
        printf("No deadlock detected.\n");
    }

    return 0;
}

4. Banker’s Algorithm In-depth

Safety Algorithm

The safety algorithm determines if a system is in a safe state.

#include <stdio.h>
#include <stdlib.h>

#define MAX_PROCESSES 10
#define MAX_RESOURCES 10

typedef struct {
    int allocation[MAX_PROCESSES][MAX_RESOURCES];
    int max[MAX_PROCESSES][MAX_RESOURCES];
    int available[MAX_RESOURCES];
    int need[MAX_PROCESSES][MAX_RESOURCES];
    int processes;
    int resources;
} BankersState;

// Initialize Banker's Algorithm state
void initializeBankers(BankersState *state, int p, int r) {
    state->processes = p;
    state->resources = r;

    for(int i = 0; i < p; i++) {
        for(int j = 0; j < r; j++) {
            state->allocation[i][j] = 0;
            state->max[i][j] = 0;
            state->need[i][j] = 0;
        }
    }

    for(int i = 0; i < r; i++) {
        state->available[i] = 0;
    }
}

// Calculate need matrix
void calculateNeed(BankersState *state) {
    for(int i = 0; i < state->processes; i++) {
        for(int j = 0; j < state->resources; j++) {
            state->need[i][j] = state->max[i][j] - state->allocation[i][j];
        }
    }
}

// Check if system is in safe state
int isSafe(BankersState *state) {
    int work[MAX_RESOURCES];
    int finish[MAX_PROCESSES] = {0};
    int safeSequence[MAX_PROCESSES];
    int count = 0;

    // Initialize work array
    for(int i = 0; i < state->resources; i++) {
        work[i] = state->available[i];
    }

    // Find a process that can be completed
    while(count < state->processes) {
        int found = 0;

        for(int i = 0; i < state->processes; i++) {
            if(!finish[i]) {
                int canAllocate = 1;

                for(int j = 0; j < state->resources; j++) {
                    if(state->need[i][j] > work[j]) {
                        canAllocate = 0;
                        break;
                    }
                }

                if(canAllocate) {
                    for(int j = 0; j < state->resources; j++) {
                        work[j] += state->allocation[i][j];
                    }

                    safeSequence[count] = i;
                    finish[i] = 1;
                    count++;
                    found = 1;
                }
            }
        }

        if(!found) {
            printf("System is not in safe state.\n");
            return 0;
        }
    }

    printf("System is in safe state.\nSafe sequence: ");
    for(int i = 0; i < state->processes; i++) {
        printf("%d ", safeSequence[i]);
    }
    printf("\n");

    return 1;
}

int main() {
    BankersState state;
    int p = 5, r = 3;

    initializeBankers(&state, p, r);

    // Example allocation matrix
    int allocation[5][3] = {
        {0, 1, 0},
        {2, 0, 0},
        {3, 0, 2},
        {2, 1, 1},
        {0, 0, 2}
    };

    // Example max matrix
    int max[5][3] = {
        {7, 5, 3},
        {3, 2, 2},
        {9, 0, 2},
        {2, 2, 2},
        {4, 3, 3}
    };

    // Available resources
    state.available[0] = 3;
    state.available[1] = 3;
    state.available[2] = 2;

    // Copy matrices
    for(int i = 0; i < p; i++) {
        for(int j = 0; j < r; j++) {
            state.allocation[i][j] = allocation[i][j];
            state.max[i][j] = max[i][j];
        }
    }

    calculateNeed(&state);
    isSafe(&state);

    return 0;
}

5. Implementation Examples

Deadlock Detection

Banker’s Algorithm with both Safety and Resource Request algorithm:

#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>

#define MAX_PROCESSES 10
#define MAX_RESOURCES 10

typedef struct {
    int processes;
    int resources;

    // Main matrices
    int allocation[MAX_PROCESSES][MAX_RESOURCES];
    int max[MAX_PROCESSES][MAX_RESOURCES];
    int need[MAX_PROCESSES][MAX_RESOURCES];
    int available[MAX_RESOURCES];

    // For tracking safe sequence
    int safe_sequence[MAX_PROCESSES];
    bool finished[MAX_PROCESSES];
} BankersSystem;

// Initialize the Banker's Algorithm system
void initializeBankers(BankersSystem *bs, int p, int r) {
    bs->processes = p;
    bs->resources = r;

    // Initialize all matrices to 0
    for(int i = 0; i < p; i++) {
        for(int j = 0; j < r; j++) {
            bs->allocation[i][j] = 0;
            bs->max[i][j] = 0;
            bs->need[i][j] = 0;
        }
        bs->finished[i] = false;
    }

    for(int i = 0; i < r; i++) {
        bs->available[i] = 0;
    }
}

// Calculate Need Matrix
void calculateNeed(BankersSystem *bs) {
    for(int i = 0; i < bs->processes; i++) {
        for(int j = 0; j < bs->resources; j++) {
            bs->need[i][j] = bs->max[i][j] - bs->allocation[i][j];
        }
    }
}

// Check if resources can be allocated to a process
bool canAllocateResources(BankersSystem *bs, int process_id, int work[]) {
    for(int i = 0; i < bs->resources; i++) {
        if(bs->need[process_id][i] > work[i])
            return false;
    }
    return true;
}

// Safety Algorithm
bool isSafeState(BankersSystem *bs) {
    int work[MAX_RESOURCES];
    int completed = 0;

    // Initialize work = available
    for(int i = 0; i < bs->resources; i++) {
        work[i] = bs->available[i];
    }

    // Reset finished array
    for(int i = 0; i < bs->processes; i++) {
        bs->finished[i] = false;
    }

    // Find a safe sequence
    while(completed < bs->processes) {
        bool found = false;

        for(int i = 0; i < bs->processes; i++) {
            if(!bs->finished[i] && canAllocateResources(bs, i, work)) {
                // Add process to safe sequence
                bs->safe_sequence[completed] = i;

                // Add allocated resources back to work
                for(int j = 0; j < bs->resources; j++) {
                    work[j] += bs->allocation[i][j];
                }

                bs->finished[i] = true;
                completed++;
                found = true;
            }
        }

        if(!found) {
            printf("System is not in safe state!\n");
            return false;
        }
    }

    printf("System is in safe state.\nSafe sequence: ");
    for(int i = 0; i < bs->processes; i++) {
        printf("P%d ", bs->safe_sequence[i]);
    }
    printf("\n");

    return true;
}

// Resource Request Algorithm
bool requestResources(BankersSystem *bs, int process_id, int request[]) {
    // Check if request is valid
    for(int i = 0; i < bs->resources; i++) {
        if(request[i] > bs->need[process_id][i]) {
            printf("Error: Process has exceeded its maximum claim!\n");
            return false;
        }
        if(request[i] > bs->available[i]) {
            printf("Error: Resources not available!\n");
            return false;
        }
    }

    // Try to allocate resources
    for(int i = 0; i < bs->resources; i++) {
        bs->available[i] -= request[i];
        bs->allocation[process_id][i] += request[i];
        bs->need[process_id][i] -= request[i];
    }

    // Check if resulting state is safe
    if(isSafeState(bs)) {
        printf("Resources allocated successfully to Process %d\n", process_id);
        return true;
    }

    // If not safe, rollback changes
    for(int i = 0; i < bs->resources; i++) {
        bs->available[i] += request[i];
        bs->allocation[process_id][i] -= request[i];
        bs->need[process_id][i] += request[i];
    }

    printf("Request denied: Would lead to unsafe state!\n");
    return false;
}

// Print current system state
void printSystemState(BankersSystem *bs) {
    printf("\nCurrent System State:\n");

    printf("\nAllocation Matrix:\n");
    for(int i = 0; i < bs->processes; i++) {
        for(int j = 0; j < bs->resources; j++) {
            printf("%d ", bs->allocation[i][j]);
        }
        printf("\n");
    }

    printf("\nMax Matrix:\n");
    for(int i = 0; i < bs->processes; i++) {
        for(int j = 0; j < bs->resources; j++) {
            printf("%d ", bs->max[i][j]);
        }
        printf("\n");
    }

    printf("\nNeed Matrix:\n");
    for(int i = 0; i < bs->processes; i++) {
        for(int j = 0; j < bs->resources; j++) {
            printf("%d ", bs->need[i][j]);
        }
        printf("\n");
    }

    printf("\nAvailable Resources:\n");
    for(int i = 0; i < bs->resources; i++) {
        printf("%d ", bs->available[i]);
    }
    printf("\n");
}

int main() {
    BankersSystem bs;
    int processes = 5;
    int resources = 3;

    initializeBankers(&bs, processes, resources);

    // Initialize Available Resources
    bs.available[0] = 3;
    bs.available[1] = 3;
    bs.available[2] = 2;

    // Initialize Allocation Matrix
    int allocation[5][3] = {
        {0, 1, 0},
        {2, 0, 0},
        {3, 0, 2},
        {2, 1, 1},
        {0, 0, 2}
    };

    // Initialize Maximum Matrix
    int max[5][3] = {
        {7, 5, 3},
        {3, 2, 2},
        {9, 0, 2},
        {2, 2, 2},
        {4, 3, 3}
    };

    // Set up initial state
    for(int i = 0; i < processes; i++) {
        for(int j = 0; j < resources; j++) {
            bs.allocation[i][j] = allocation[i][j];
            bs.max[i][j] = max[i][j];
        }
    }

    calculateNeed(&bs);
    printSystemState(&bs);

    // Check if system is in safe state
    printf("\nChecking initial state safety...\n");
    isSafeState(&bs);

    // Try to request resources
    printf("\nTesting resource request...\n");
    int request[3] = {1, 0, 2};
    requestResources(&bs, 1, request);

    return 0;
}

6. Performance Analysis

Performance metrics for different deadlock detection algorithms:

| Algorithm | Time Complexity | Space Complexity | |—|—|—| | Resource Allocation Graph | O(P + R) | O(P * R) | | Wait-for Graph | O(P²) | O(P²) | | Banker’s Algorithm | O(P² * R) | O(P * R) | (P = processes, R = resources)

7. Common Challenges and Solutions

• Recovery Mechanisms: Solution: Implement priority-based process termination. Implementation of process priority system. Resource reallocation strategies.
• Scalability Issues: Challenge: Detection algorithms becoming slower with system growth. Solution: Implement hierarchical detection methods. Partitioned resource management.

#include <stdio.h>
#include <stdlib.h>

#define MAX_PROCESSES 10
#define MAX_RESOURCES 10

typedef struct {
    int pid;
    int priority;
    int age;
    int resources_held[MAX_RESOURCES];
} Process;

typedef struct {
    Process processes[MAX_PROCESSES];
    int num_processes;
    int num_resources;
} DeadlockRecovery;

// Initialize recovery system
void initializeRecovery(DeadlockRecovery *dr, int num_proc, int num_res) {
    dr->num_processes = num_proc;
    dr->num_resources = num_res;

    for(int i = 0; i < num_proc; i++) {
        dr->processes[i].pid = i;
        dr->processes[i].priority = rand() % 10; // 0-9 priority
        dr->processes[i].age = 0;

        for(int j = 0; j < num_res; j++) {
            dr->processes[i].resources_held[j] = 0;
        }
    }
}

// Select victim process for termination
int selectVictimProcess(DeadlockRecovery *dr) {
    int victim = -1;
    int lowest_priority = 999;

    for(int i = 0; i < dr->num_processes; i++) {
        int current_priority = dr->processes[i].priority - (dr->processes[i].age / 10);

        if(current_priority < lowest_priority) {
            lowest_priority = current_priority;
            victim = i;
        }
    }

    return victim;
}

// Release resources held by terminated process
void releaseResources(DeadlockRecovery *dr, int victim) {
    printf("Releasing resources held by process %d\n", victim);

    for(int i = 0; i < dr->num_resources; i++) {
        if(dr->processes[victim].resources_held[i] > 0) {
            printf("Released resource %d\n", i);
            dr->processes[victim].resources_held[i] = 0;
        }
    }
}

// Handle deadlock recovery
void recoverFromDeadlock(DeadlockRecovery *dr) {
    int victim = selectVictimProcess(dr);

    if(victim != -1) {
        printf("Selected process %d for termination\n", victim);
        releaseResources(dr, victim);

        // Age remaining processes
        for(int i = 0; i < dr->num_processes; i++) {
            if(i != victim) {
                dr->processes[i].age++;
            }
        }
    }
}

int main() {
    DeadlockRecovery dr;
    initializeRecovery(&dr, 5, 3);

    // Simulate resource allocation
    dr.processes[0].resources_held[0] = 1;
    dr.processes[1].resources_held[1] = 1;
    dr.processes[2].resources_held[2] = 1;

    // Simulate deadlock detection and recovery
    printf("Simulating deadlock recovery...\n");
    recoverFromDeadlock(&dr);

    return 0;
}

8. Best Practices

• Prevention Strategies: Implement resource ordering, use timeout mechanisms, regular system state verification.
• Detection Frequency: Periodic checks rather than continuous monitoring, event-driven detection, resource utilization thresholds.
• Recovery Policies: Process priority management, resource preemption strategies, checkpoint and rollback mechanisms.

#include <stdio.h>
#include <stdlib.h>

#define MAX_RESOURCES 10

typedef struct {
    int resource_id;
    int priority;
    int available;
} Resource;

typedef struct {
    Resource resources[MAX_RESOURCES];
    int num_resources;
} ResourceOrderingSystem;

// Initialize resource ordering system
void initializeResourceOrdering(ResourceOrderingSystem *ros, int num_res) {
    ros->num_resources = num_res;

    for(int i = 0; i < num_res; i++) {
        ros->resources[i].resource_id = i;
        ros->resources[i].priority = i; // Higher number = higher priority
        ros->resources[i].available = 1;
    }
}

// Check if resource request follows ordering
int isValidResourceRequest(ResourceOrderingSystem *ros, int current_resource, int requested_resource) {
    if(current_resource == -1) return 1; // First resource request

    return ros->resources[current_resource].priority < ros->resources[requested_resource].priority;
}

// Request resource
int requestResource(ResourceOrderingSystem *ros, int process_id, int current_resource, int requested_resource) {
    if(!isValidResourceRequest(ros, current_resource, requested_resource)) {
        printf("Invalid resource request order! Must request resources in increasing priority.\n");
        return 0;
    }

    if(!ros->resources[requested_resource].available) {
        printf("Resource %d not available\n", requested_resource);
        return 0;
    }

    ros->resources[requested_resource].available = 0;
    printf("Resource %d allocated to process %d\n", requested_resource, process_id);
    return 1;
}

int main() {
    ResourceOrderingSystem ros;
    initializeResourceOrdering(&ros, 5);

    // Simulate resource requests
    int process_id = 1;
    int current_resource = -1;

    // Valid resource ordering
    if(requestResource(&ros, process_id, current_resource, 0)) {
        current_resource = 0;
    }

    if(requestResource(&ros, process_id, current_resource, 2)) {
        current_resource = 2;
    }

    // Invalid resource ordering (will fail)
    requestResource(&ros, process_id, current_resource, 1);

    return 0;
}

9. Conclusion

Deadlock detection and prevention remain crucial aspects of operating system design. The choice of algorithm depends on system requirements, scale, and performance constraints. Banker’s Algorithm, while conservative, provides a safe approach to resource allocation, while other detection methods offer different trade-offs between accuracy and performance.

10. References and Further Reading

• Silberschatz, A., Galvin, P. B., & Gagne, G. (2018). Operating System Concepts (10th ed.)
• Tanenbaum, A. S. (2015). Modern Operating Systems (4th ed.)
• Stallings, W. (2018). Operating Systems: Internals and Design Principles (9th ed.)
• Dijkstra, E. W. (1965). Solution of a Problem in Concurrent Programming Control
• Coffman, E. G., Elphick, M., & Shoshani, A. (1971). System Deadlocks

Further Reading:

• “The Deadlock Problem: A Comprehensive Review” - ACM Computing Surveys
• “Resource Allocation Graphs in Operating Systems” - IEEE Transactions
• “Performance Analysis of Deadlock Detection Algorithms” - Journal of Systems and Software

This concludes our Day 14. Day 15 will cover Memory Management Overview, focusing on memory hierarchy and related concepts.

This site is open source. Improve this page.
