Exploring Operating Systems

Day 21: Memory Segmentation

Table of Contents

1. Introduction

Segmentation is a memory management technique that organizes memory based on the logical structure of a program. Unlike paging, which divides memory into fixed-size pages, segmentation divides a program into logical units called segments, such as code, data, stack, and heap. This allows for a more natural representation of the program’s structure and facilitates features like protection and sharing.

Segmentation provides a programmer-friendly view of memory, aligning with how programs are typically organized. It also offers greater flexibility in terms of protection and sharing, allowing different access permissions for different segments and enabling efficient sharing of code or data segments between processes.

2. Segmentation Fundamentals

Key concepts in segmentation include the logical address structure, segment properties, and memory organization. Understanding these concepts is essential for comprehending how segmentation works and its implications for memory management.

Segmentation uses a logical address composed of a segment number and an offset. The segment number identifies the segment, while the offset specifies the location within the segment. Each segment has properties like a base address, limit, and protection bits, which control its location, size, and access permissions in physical memory.

3. Segment Table Architecture

The segment table is a crucial data structure in segmentation. It stores information about each segment, including its base address, limit, and protection bits. The segment table is used for address translation and access control.

Each entry in the segment table corresponds to a segment and contains information necessary for address translation and access control. This information includes the segment’s base address in physical memory, its limit, and protection bits that determine access permissions.

typedef struct {
    unsigned int base_address;    // Base address of segment
    unsigned int limit;           // Length of segment
    unsigned int protection_bits; // Access rights
    unsigned char valid;         // Present/absent bit
} SegmentTableEntry;

typedef struct {
    SegmentTableEntry* entries;
    unsigned int size;           // Number of segments
} SegmentTable;

4. Address Translation in Segmentation

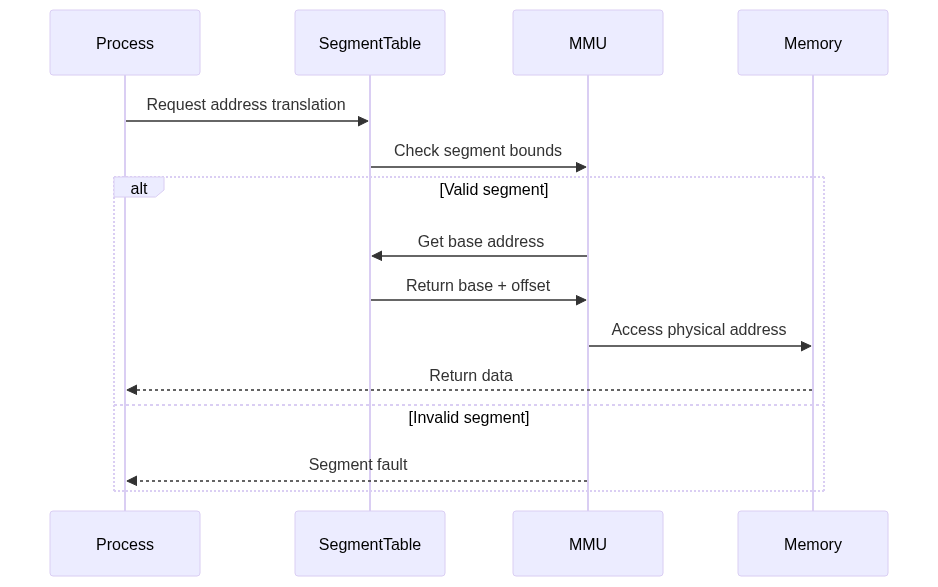

Address translation in segmentation involves mapping a logical address to a physical address. This is achieved using the segment table. The segment number in the logical address is used to index into the segment table, retrieving the base address of the segment. The offset is then added to the base address to obtain the physical address. Bounds checks are performed to ensure that the offset is within the segment’s limit.

5. Implementation in C

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#define MAX_SEGMENTS 256
#define MAX_MEMORY_SIZE 65536

#define READ_PERMISSION  4
#define WRITE_PERMISSION 2
#define EXEC_PERMISSION  1

typedef struct {
    unsigned int base_address;
    unsigned int limit;
    unsigned int protection_bits;
    unsigned char valid;
} SegmentTableEntry;

typedef struct {
    SegmentTableEntry entries[MAX_SEGMENTS];
    unsigned int size;
} SegmentTable;

typedef struct {
    char* memory;
    unsigned int size;
} PhysicalMemory;

SegmentTable* createSegmentTable() {
    SegmentTable* table = (SegmentTable*)malloc(sizeof(SegmentTable));
    table->size = 0;

    for(int i = 0; i < MAX_SEGMENTS; i++) {
        table->entries[i].base_address = 0;
        table->entries[i].limit = 0;
        table->entries[i].protection_bits = 0;
        table->entries[i].valid = 0;
    }

    return table;
}

int createSegment(SegmentTable* table, unsigned int size, unsigned int protection) {
    if(table->size >= MAX_SEGMENTS) {
        printf("Error: Maximum segments reached\n");
        return -1;
    }

    int segment_number = table->size++;
    table->entries[segment_number].base_address = 0; // Will be set during allocation
    table->entries[segment_number].limit = size;
    table->entries[segment_number].protection_bits = protection;
    table->entries[segment_number].valid = 1;

    return segment_number;
}

unsigned int translateAddress(SegmentTable* table, unsigned int segment, unsigned int offset) {
    if(segment >= table->size) {
        printf("Error: Invalid segment number\n");
        return -1;
    }

    SegmentTableEntry* entry = &table->entries[segment];

    if(!entry->valid) {
        printf("Error: Segment not in memory\n");
        return -1;
    }

    if(offset >= entry->limit) {
        printf("Error: Segment overflow\n");
        return -1;
    }

    return entry->base_address + offset;
}

int checkAccess(SegmentTable* table, unsigned int segment, unsigned int access_type) {
    if(segment >= table->size) return 0;

    SegmentTableEntry* entry = &table->entries[segment];
    return (entry->protection_bits & access_type) != 0;
}

PhysicalMemory* initializePhysicalMemory() {
    PhysicalMemory* memory = (PhysicalMemory*)malloc(sizeof(PhysicalMemory));
    memory->size = MAX_MEMORY_SIZE;
    memory->memory = (char*)malloc(MAX_MEMORY_SIZE);
    return memory;
}

int allocateSegment(SegmentTable* table, PhysicalMemory* memory, int segment_number) {
    if(segment_number >= table->size) return -1;

    SegmentTableEntry* entry = &table->entries[segment_number];
    unsigned int size = entry->limit;

    // Simple first-fit allocation
    unsigned int current_address = 0;
    while(current_address + size <= memory->size) {
        int space_available = 1;
        for(unsigned int i = 0; i < size; i++) {
            if(memory->memory[current_address + i] != 0) {
                space_available = 0;
                break;
            }
        }

        if(space_available) {
            entry->base_address = current_address;
            return current_address;
        }

        current_address++;
    }

    return -1;
}

int main() {
    SegmentTable* table = createSegmentTable();
    PhysicalMemory* memory = initializePhysicalMemory();

    int code_segment = createSegment(table, 1024, READ_PERMISSION | EXEC_PERMISSION);
    int data_segment = createSegment(table, 2048, READ_PERMISSION | WRITE_PERMISSION);
    int stack_segment = createSegment(table, 4096, READ_PERMISSION | WRITE_PERMISSION);

    printf("Code segment allocated at: %d\n",
           allocateSegment(table, memory, code_segment));
    printf("Data segment allocated at: %d\n",
           allocateSegment(table, memory, data_segment));
    printf("Stack segment allocated at: %d\n",
           allocateSegment(table, memory, stack_segment));

    unsigned int logical_address = 100;
    unsigned int physical_address = translateAddress(table, data_segment, logical_address);
    printf("Logical address %d in segment %d translates to physical address %d\n",
           logical_address, data_segment, physical_address);

    printf("Can write to data segment: %s\n",
           checkAccess(table, data_segment, WRITE_PERMISSION) ? "Yes" : "No");
    printf("Can execute data segment: %s\n",
           checkAccess(table, data_segment, EXEC_PERMISSION) ? "Yes" : "No");

    free(table);
    free(memory->memory);
    free(memory);

    return 0;
}

6. Protection and Sharing

Segmentation provides mechanisms for memory protection and sharing between processes. Protection is achieved by associating access rights with each segment. Sharing is facilitated by allowing multiple processes to have entries in their segment tables that point to the same physical memory region.

Protection bits in the segment table entries control access permissions for each segment. This allows different segments to have different access rights (read, write, execute), ensuring memory protection and preventing unauthorized access. Sharing is implemented by allowing multiple processes to access the same segment with potentially different access permissions.

void shareSegment(SegmentTable* source, SegmentTable* target,
                 int segment_number, int protection) {
    if(segment_number >= source->size) return;

    SegmentTableEntry* source_entry = &source->entries[segment_number];
    int new_segment = target->size++;

    target->entries[new_segment] = *source_entry;
    target->entries[new_segment].protection_bits = protection;
}

7. Segmentation vs Paging

Segmentation and paging are different memory management techniques. Segmentation divides memory based on logical units, while paging divides memory into fixed-size pages. Each approach has its own advantages and disadvantages.

8. Real-world Applications

While segmentation is not as widely used as paging in modern operating systems, it is still employed in certain contexts, such as the Intel x86 architecture and for specific purposes like thread-local storage in Linux.

struct x86_segment_descriptor {
    unsigned short limit_low;
    unsigned short base_low;
    unsigned char base_middle;
    unsigned char access;
    unsigned char granularity;
    unsigned char base_high;
};

9. Performance Considerations

10. Conclusion

Segmentation offers a logical view of memory, flexible protection mechanisms, and support for sharing and dynamic growth. However, it can suffer from external fragmentation and has a more complex memory management scheme compared to paging.

11. References and Further Reading
