Exploring Operating Systems

Day 36: Shared Memory

Table of Contents

1. Introduction to Advanced Shared Memory
2. Low-Level Shared Memory Operations
3. Memory Mapping and Protection
4. Synchronization Mechanisms
5. Advanced Memory Management
6. Performance Optimization
7. Implementation Examples
8. Security Considerations
9. Debugging Techniques
10. Conclusion

1. Introduction to Advanced Shared Memory

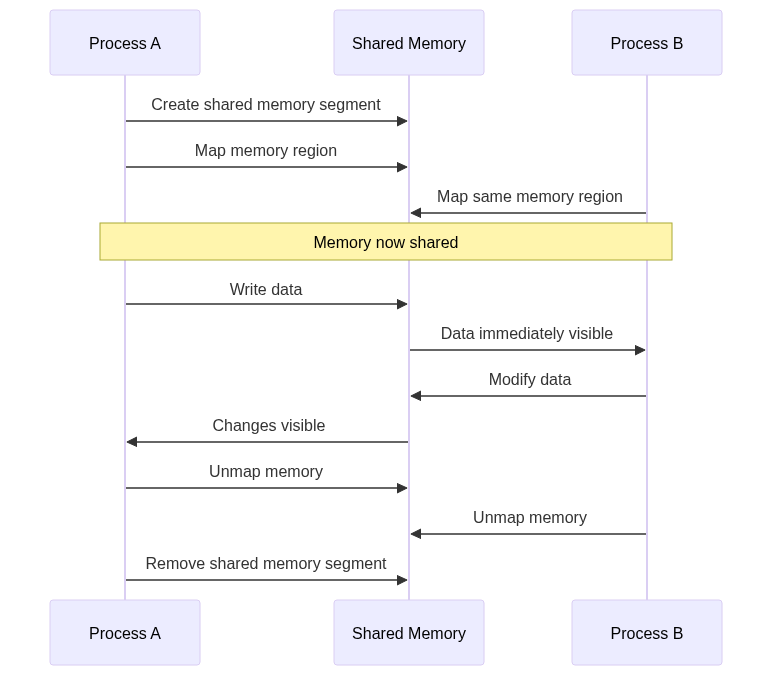

Shared memory is one of the fastest Inter-Process Communication (IPC) mechanisms because it allows processes to directly access the same memory region. This eliminates the need for data copying, making it highly efficient for high-performance applications. Advanced shared memory techniques involve low-level memory management, synchronization, and optimization strategies.

Key Concepts:

• Memory Mapping: Shared memory is typically implemented using memory-mapped files or anonymous memory mappings. This allows processes to map the same physical memory into their address spaces.
• Page Alignment: Memory is managed in pages (usually 4KB). Aligning data structures to page boundaries can improve performance and prevent cache line contention.
• Memory Protection: Shared memory regions can be protected using flags like PROT_READ, PROT_WRITE, and PROT_EXEC to control access.
• Cache Coherency: Ensuring that all processes see consistent data in shared memory requires careful handling of cache coherency.
• Memory Barriers: These are used to enforce ordering of memory operations, ensuring that changes made by one process are visible to others in the correct order.
• Memory Ordering: Modern CPUs may reorder memory operations for performance. Memory barriers and atomic operations help maintain the correct order.

2. Low-Level Shared Memory Operations

2.1 POSIX Shared Memory Implementation

The following code demonstrates how to create and use POSIX shared memory with advanced features like mutex synchronization.

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <unistd.h>
#include <errno.h>

#define SHM_NAME "/advanced_shm"
#define SHM_SIZE 4096

typedef struct {
    int counter;
    char data[1024];
    pthread_mutex_t mutex;
} shared_data_t;

int main() {
    int fd;
    shared_data_t *shared_data;

    fd = shm_open(SHM_NAME, O_CREAT | O_RDWR, 0666);
    if (fd == -1) {
        perror("shm_open");
        exit(EXIT_FAILURE);
    }

    if (ftruncate(fd, SHM_SIZE) == -1) {
        perror("ftruncate");
        exit(EXIT_FAILURE);
    }

    shared_data = mmap(NULL, SHM_SIZE,
                      PROT_READ | PROT_WRITE,
                      MAP_SHARED, fd, 0);
    if (shared_data == MAP_FAILED) {
        perror("mmap");
        exit(EXIT_FAILURE);
    }

    pthread_mutexattr_t mutex_attr;
    pthread_mutexattr_init(&mutex_attr);
    pthread_mutexattr_setpshared(&mutex_attr, PTHREAD_PROCESS_SHARED);
    pthread_mutex_init(&shared_data->mutex, &mutex_attr);

    shared_data->counter = 0;
    strcpy(shared_data->data, "Initial data");

    pthread_mutexattr_destroy(&mutex_attr);

    return 0;
}

You can run the code like:

gcc -o shm_advanced shm_advanced.c -lrt -lpthread
./shm_advanced

Expected Output: The program will create a shared memory segment and initialize it with a counter and a string. No output will be printed, but the shared memory will be ready for use by other processes.

3. Memory Mapping and Protection

3.1 Advanced Memory Mapping

The following code demonstrates advanced memory mapping techniques, including memory alignment and protection.

#include <stdio.h>
#include <stdlib.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <unistd.h>

#define PAGE_SIZE 4096

void *create_aligned_memory(size_t size) {
    void *addr;

    if (posix_memalign(&addr, PAGE_SIZE, size) != 0) {
        perror("posix_memalign");
        return NULL;
    }

    if (mlock(addr, size) == -1) {
        perror("mlock");
        free(addr);
        return NULL;
    }

    return addr;
}

int main() {
    void *aligned_mem = create_aligned_memory(PAGE_SIZE);
    if (!aligned_mem) {
        exit(EXIT_FAILURE);
    }

    void *mapped_mem = mmap(NULL, PAGE_SIZE,
                           PROT_READ | PROT_WRITE,
                           MAP_PRIVATE | MAP_ANONYMOUS,
                           -1, 0);
    if (mapped_mem == MAP_FAILED) {
        perror("mmap");
        exit(EXIT_FAILURE);
    }

    if (mprotect(mapped_mem, PAGE_SIZE, PROT_READ) == -1) {
        perror("mprotect");
        exit(EXIT_FAILURE);
    }

    munlock(aligned_mem, PAGE_SIZE);
    free(aligned_mem);
    munmap(mapped_mem, PAGE_SIZE);

    return 0;
}

4. Synchronization Mechanisms

4.1 Advanced Mutex Implementation

The following code demonstrates how to create a shared mutex and condition variable for synchronization between processes.

#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <sys/mman.h>
#include <fcntl.h>
#include <unistd.h>

typedef struct {
    pthread_mutex_t mutex;
    pthread_cond_t cond;
    int flag;
} sync_struct_t;

sync_struct_t *create_sync_structure() {
    sync_struct_t *sync;

    sync = mmap(NULL, sizeof(sync_struct_t),
                PROT_READ | PROT_WRITE,
                MAP_SHARED | MAP_ANONYMOUS, -1, 0);
    if (sync == MAP_FAILED) {
        perror("mmap");
        return NULL;
    }

    pthread_mutexattr_t mutex_attr;
    pthread_mutexattr_init(&mutex_attr);
    pthread_mutexattr_setpshared(&mutex_attr, PTHREAD_PROCESS_SHARED);
    pthread_mutex_init(&sync->mutex, &mutex_attr);

    pthread_condattr_t cond_attr;
    pthread_condattr_init(&cond_attr);
    pthread_condattr_setpshared(&cond_attr, PTHREAD_PROCESS_SHARED);
    pthread_cond_init(&sync->cond, &cond_attr);

    sync->flag = 0;

    pthread_mutexattr_destroy(&mutex_attr);
    pthread_condattr_destroy(&cond_attr);

    return sync;
}

You can run the code like:

gcc -o sync_advanced sync_advanced.c -lpthread
./sync_advanced

Expected Output: The program will create a shared synchronization structure with a mutex and condition variable. No output will be printed, but the structure will be ready for use by other processes.

5. Advanced Memory Management

5.1 Custom Memory Allocator

The following code demonstrates how to create a custom memory allocator using shared memory.

#include <stdio.h>
#include <stdlib.h>
#include <sys/mman.h>
#include <string.h>

#define POOL_SIZE (1024 * 1024)  // 1MB pool

typedef struct memory_block {
    size_t size;
    int free;
    struct memory_block *next;
} memory_block_t;

typedef struct {
    void *pool;
    memory_block_t *first_block;
} memory_pool_t;

memory_pool_t *create_memory_pool() {
    memory_pool_t *pool = malloc(sizeof(memory_pool_t));
    if (!pool) return NULL;

    pool->pool = mmap(NULL, POOL_SIZE,
                     PROT_READ | PROT_WRITE,
                     MAP_PRIVATE | MAP_ANONYMOUS,
                     -1, 0);
    if (pool->pool == MAP_FAILED) {
        free(pool);
        return NULL;
    }

    pool->first_block = (memory_block_t*)pool->pool;
    pool->first_block->size = POOL_SIZE - sizeof(memory_block_t);
    pool->first_block->free = 1;
    pool->first_block->next = NULL;

    return pool;
}

void *pool_alloc(memory_pool_t *pool, size_t size) {
    memory_block_t *current = pool->first_block;
    memory_block_t *best_fit = NULL;
    size_t min_size_diff = SIZE_MAX;

    while (current) {
        if (current->free && current->size >= size) {
            size_t size_diff = current->size - size;
            if (size_diff < min_size_diff) {
                min_size_diff = size_diff;
                best_fit = current;
            }
        }
        current = current->next;
    }

    if (!best_fit) return NULL;

    if (best_fit->size > size + sizeof(memory_block_t) + 32) {
        memory_block_t *new_block = (memory_block_t*)((char*)best_fit +
                                   sizeof(memory_block_t) + size);
        new_block->size = best_fit->size - size - sizeof(memory_block_t);
        new_block->free = 1;
        new_block->next = best_fit->next;

        best_fit->size = size;
        best_fit->next = new_block;
    }

    best_fit->free = 0;
    return (char*)best_fit + sizeof(memory_block_t);
}

6. Performance Optimization

6.1 Memory Alignment and Cache Optimization

The following code demonstrates how to optimize memory access patterns for better cache performance.

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>

#define CACHE_LINE 64

typedef struct __attribute__((aligned(CACHE_LINE))) {
    int64_t data;
    char padding[CACHE_LINE - sizeof(int64_t)];
} aligned_data_t;

void optimize_access(aligned_data_t *data, size_t size) {
    for (size_t i = 0; i < size; i += CACHE_LINE) {
        data[i].data = i;
    }
}

7. Implementation Examples

7.1 Shared Memory with Synchronization

The following code demonstrates how to use shared memory with synchronization mechanisms like mutexes and condition variables.

#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <sys/mman.h>
#include <fcntl.h>
#include <unistd.h>

typedef struct {
    pthread_mutex_t mutex;
    pthread_cond_t cond;
    int flag;
} sync_struct_t;

sync_struct_t *create_sync_structure() {
    sync_struct_t *sync;

    sync = mmap(NULL, sizeof(sync_struct_t),
                PROT_READ | PROT_WRITE,
                MAP_SHARED | MAP_ANONYMOUS, -1, 0);
    if (sync == MAP_FAILED) {
        perror("mmap");
        return NULL;
    }

    pthread_mutexattr_t mutex_attr;
    pthread_mutexattr_init(&mutex_attr);
    pthread_mutexattr_setpshared(&mutex_attr, PTHREAD_PROCESS_SHARED);
    pthread_mutex_init(&sync->mutex, &mutex_attr);

    pthread_condattr_t cond_attr;
    pthread_condattr_init(&cond_attr);
    pthread_condattr_setpshared(&cond_attr, PTHREAD_PROCESS_SHARED);
    pthread_cond_init(&sync->cond, &cond_attr);

    sync->flag = 0;

    pthread_mutexattr_destroy(&mutex_attr);
    pthread_condattr_destroy(&cond_attr);

    return sync;
}

Steps to Run the Code:

gcc -o shm_sync_example shm_sync_example.c -lpthread
./shm_sync_example

Expected Output: The program will create a shared synchronization structure with a mutex and condition variable. No output will be printed, but the structure will be ready for use by other processes.

8. Security Considerations

8.1 Memory Protection

Memory protection is crucial for securing shared memory. The following code demonstrates how to set memory protection using mprotect.

if (mprotect(addr, size, PROT_READ | PROT_WRITE) == -1) {
    perror("mprotect");
    exit(EXIT_FAILURE);
}

8.2 Access Control

Access control ensures that only authorized processes can access shared memory. The following code demonstrates how to set proper permissions for shared memory.

mode_t mode = S_IRUSR | S_IWUSR;
int fd = shm_open(name, O_CREAT | O_RDWR, mode);

9. Debugging Techniques

9.1 Memory Dump Utility

The following code demonstrates a utility for dumping memory contents, which can be useful for debugging shared memory issues.

#include <stdio.h>
#include <sys/mman.h>

void dump_memory_info(void *addr, size_t size) {
    unsigned char *ptr = (unsigned char*)addr;
    printf("Memory dump at %p:\n", addr);

    for (size_t i = 0; i < size; i++) {
        if (i % 16 == 0) printf("\n%04zx: ", i);
        printf("%02x ", ptr[i]);
    }
    printf("\n");
}

10. Conclusion

Advanced shared memory programming requires a deep understanding of memory management, synchronization, and system architecture. The techniques covered here provide a foundation for building high-performance applications that efficiently share data between processes.
